How to mount it on the boat?

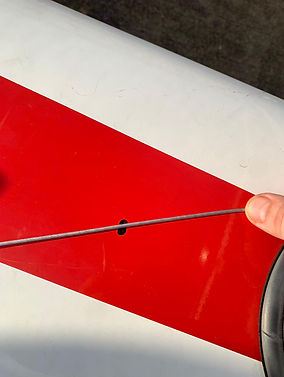

You set markers on the boat to check catch and release angles. All you need to know is the span (distance between the pin and centerline of the boat) Then take the L value corresponding to the span and the desired angle from the following tables. Put the mark on the centerline of the boat at L cm from the pin projection. Stretch a rope between the mark and the center of the gate approx. 4cm from the pin.
SWEEP - FIRST TIME SETUP - SHAFT touching Carbon Tube

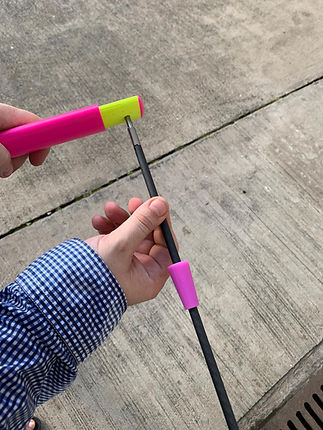

1. Put the carbon tube into the arm
2. Remove the sticker from Angle ruler
3. Mount the Angle ruler so zero looks toward the centerline of the boat
4. Mount the Shoulder on the Angle ruler
5. Measure by the drawing bellow, distance from the centerline toward the stern
6. Connect mark with the gate
7. Let the line go through the middle of the shaft and Adjust the HQ Catch according to the edge of the shaft
8. Put the boat on the water, let the bottom blade edge touch edge of the water. Adjust the height of the silicone cone on the carbon tube
SCULL - FIRST TIME SETUP - SHAFT touching Carbon Tube
1. Put the carbon tubes in the arms
2. Unscrew screw bellow the pin, add device between screw and rigger and screw it back
3. Measure by the drawing bellow, distance from the centerline toward the stern
4. Connect mark with the gate
5. Let the line go through the middle of the shaft and adjust the HQ Catch according to the edge of the shaft
6. Put the boat on the water, and let the bottom blade edge touch the edge of the water. Adjust the height of the silicone cone on the carbon tube
